About us
AVANTEC is one of the world’s leading manufacturers of high positive milling tools. Established in 1989 by Gustav Werthwein, who then worked with a team of three, AVANTEC has evolved into a company of 140 employees with its own representatives in the United States, Italy, Austria and China.
We work in partnership with the engineering and production teams of machine tool manufacturers, OEMs, suppliers and many medium-sized manufacturers to develop innovative solutions and strategies for challenging tasks and materials – our high positive milling tools are being deployed with great success in sectors such as the automotive industry, at energy utilities, machine engineering enterprises and many other industries.
Putting our interdisciplinary industry experience, consistently evolving know-how and creative staff members to work for our clientele, we implement hundreds of innovative standard tooling and custom turnkey solutions year after year. AVANTEC milling cutters are known in the industry for their high performance, long tool life, outstanding precision and always deliver maximum Q.
Address
Wilhelmstr. 123
75428 Illingen
Germany
E-mail: Info@avantec.de
Phone: +49 7042 82220
Internet: www.avantec.de
Room 704-17, Building17 No. 99 Fuda Road, Ludu Street
215400 Taicang, Jiangsu Province
China
E-mail: dan.nie@avantec.de
Phone: +86 186 21957845
Internet: www.avantec.de
Contact person:
Dan Nie
Head of Sales
E-mail: dan.nie@avantec.de
Phone: +86 1862 1957845
Products & Services
High positive milling cutters - standard tooling and cutomized solution
broaching tools, Multiring-shell end mills, face milling cutters-finishing cutters, side milling cutters-slitting cutters, plunge milling cutters, copy mlling cutters-high feed cutters, shoulder milling cutters-shank end mills, t-slot and circular milling cutters, solid carbide end mills.

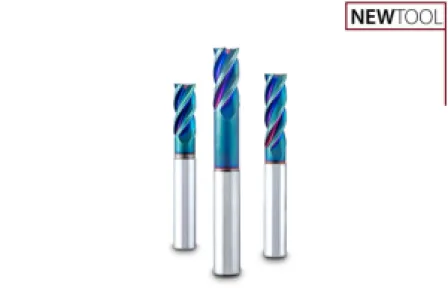

Solid Carbide end mills Q-MaxX
With the Q-MaxX HPC high-performance cutter, AVANTEC once again proves what our brand stands for: maximum performance, absolute precision, and uncompromising quality.
AVANTEC advantages that make the difference:
Superior metal removal rate thanks to innovative AVANTEC cutting-edge geometry
Flexibility made by AVANTEC: 2xD, 3xD and long versions for every machining depth
Highest process reliability – robust, low-vibration, dependable
Longer tool life and improved surface quality with AVANTEC high-end coatings
Boost productivity, reduce costs through shorter machining times
Der Q-MaxX is more than just a tool – it is an AVANTEC promise of performance: Efficiency. Precision. Durability.

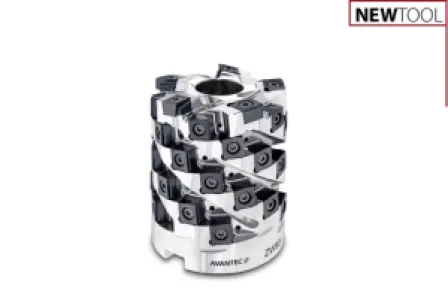

Shell end mill ZW90
Versatile in Plunge and Face Milling: The robust end cutting edge and solid indexable insert deliver maximum material removal rates with high cutting length and large feed per tooth – ideal for efficient cast material machining.
Maximum performance in plunge and face milling
Strong in castings – fast, robust, efficient
High feeds, high cutting speeds, maximum productivity
Multifunctional thanks to solid indexable insert
Diameter 50 – 100 mm
Length of cut SL 48 – 89 mm
Zeff 3 – 6

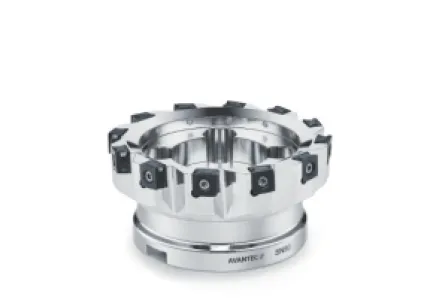

Shoulder milling cutter SN90
Crosscut angle 90°
Economical with 8-edged tangential SN indexable insert
Robust and easy-cutting and ideal for machining cast iron
Kappa angle 90°
Diameter 50 – 160 mm
ap Depth of cut 9.0 mm
hmax 0.15 – 0.28 mm

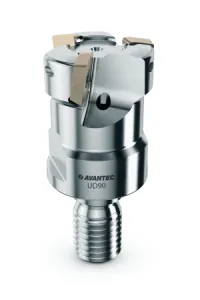

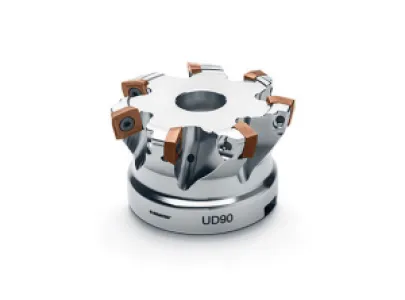

High Feed cutter UD90
The versions with Ø 16-50 mm are optimal for powerful milling on live tooling lathes and machining centers with rather low rigidity and drive power
DIN tool holders with standard adaptation shank and spindle connection for HSK, Capto and SK
Suitable for universal use, with 4-cutting edge UDGT indexable insert, in particular for high alloy steels
“Soft” cutting ensures maximum metal removal rate Q even in case of extreme overhang
Ideal for pocket milling
Remarkable finishing quality even at high feed rates
Excellent surface quality
Ramp angle 0.8° – 4°
Diameter 16 – 160 mm
ap Depth of cut 1.0 – 3.0 mm
fz Feed rate per tooth 0.45 – 2.1 mm

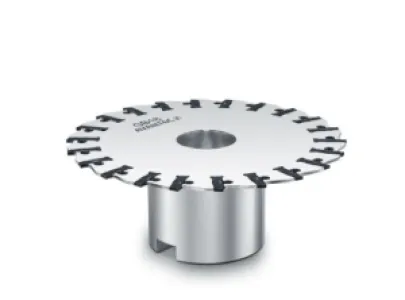

Slitting cutters GB18/GN18
The GN18 is a standard milling cutter. It slits and severs. It has double-cutting edge indexable inserts that are positively connected. This makes the GN18 extraordinarily reliable. And fast. Moreover, it boasts a compact design. To accommodate more teeth. They deliver… more Q.
2-cutting edge indexable insert
Cutting width from 2.5 mm
Excellent cutting force dissiption
Narrow tooth pitch
High feed rates
Diameter 80 – 160 mm
Width of cut B(h11) 2 – 3.5 mm
Zeff 8 – 22
Width of cut 18 – 44 mm

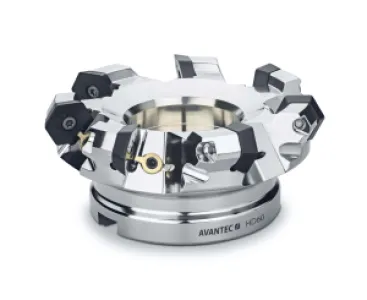

Face milling cutter HD60
For universal use in cast iron and steel machining
Excellent surface quality due to wiper geometry
Variable clamping wedge system suitable for long- and short-chipping materials
Kappa angle 60°
Diameter 80 – 200 mm
ap Depth of cut 10 mm
hmax 0.3 – 0.55 mm

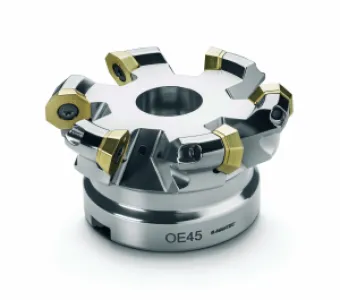

Face milling cutter OE45
Well suited for the powerful machining of stainless steel materials
Optimal chip removal through improved cutting edge geometry
All diameters with internal cooling
Kappa angle 45°
Diameter 50 – 160 mm
ap Depth of cut 4.5 mm
hmax 0.22 – 0.65 mm

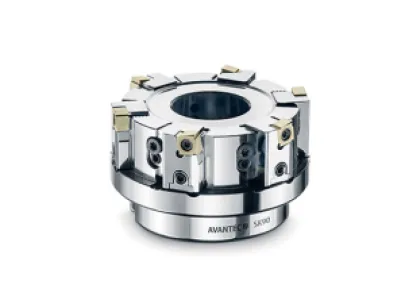

Finishing cutter SK90
Highly precise finishing cutters with cartridge system
Simple handling in setting and insert replacement
Excellent surface quality with 4-cutting edge SN indexable insert
Very wide wiper edge for optimum use in cast materials
Axial run-out < 0.005 mm
Kappa angle 90°
Diameter 63 – 160 mm
ap Depth of cut 0.1 – 0.3 mm

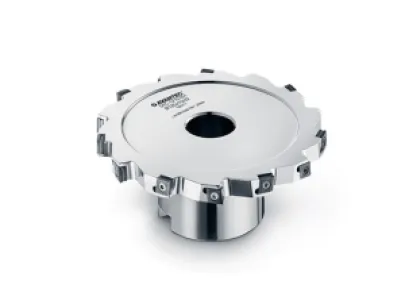

Side milling cutters tangential CB18 | CN18
4-cutting edge CN indexable insert
Fine tooth pitch through tangential insert design
Very smooth cutting through left and right hand inserts
Secondary cutting edge positioned outside of the cutting zone
Face milling possible with CB18
Depth of cut 10 – 14 mm
Kappa angle + groove machining 90°
Diameter 100 – 160 mm
Width of cut 25 – 50 mm
hmax 0.05 – 0.16 mm

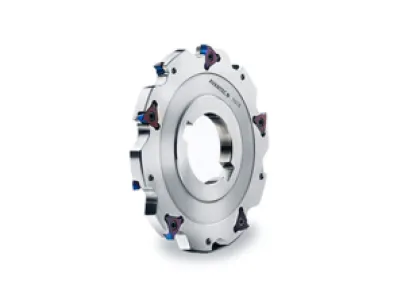

Side milling cutters TN18
Extremely smooth cutting through left and right hand inserts
Highly precise widths of cutfrom 4-12 mm
Complies with narrow radial and axial run out tolerances
3-side embedding of the T-style indexable insert
Depth of cut 4 – 12 mm
Kappa angle + groove machining 90°
Diameter 63 – 250 mm
Width of cut 12 – 89 mm
hmax 0.05 – 0.20 mm
